Cleanable filter media

Test method for filtration characterization of cleanable filter media






















ISO 11057 Sequence of the standard test phases

Measuring phases

Conditions

Determination of clean-gas concentration

Phase 1: conditioning

30 loading cycles with differential pressure controlled pulse-jet cleaning and a cleaning set point of 1 000 Pa

yes

Phase 2: ageing

2 500 pulse-jet cleaning cycles at an interval of 20 s each

no

Phase 3: stabilizing

10 loading cycles with differential pressure controlled pulse-jet cleaning

no

Phase 4: measuring

30 loading cycles but at least 2 h measuring time with differential pressure controlled pulse-jet cleaning and a cleaning set point of 1 000 Pa

yes

Phase 5: optional measuring

2 h loading cycles with raised cleaning set point of 1800 Pa

yes



Comaprision of testing parameters

Parameters

Unit

ISO 11057

VDI 3926

GB/T 6719

ASTM 6830

Dust concentration

g/m3

5

18.4

Particle size (MMD)

μm

4.5

1.5

Filter face velocity

m/min

2

Tank pressure

M Pa

0.5

Conditioning (Cleaning set point / cycles)

Pa

1000

-

Conditioning cycles



30



Ageing (Puls-jet cleaning)

cycles

2500

10000

Valve opening time

ms

60

50

Ageing time (Each cycle)

sec

20

5

3 (5)

Ageing time (Total)

sec

50000

30000

Stabilizing

cycles

10

10

10

30

Measuring



30 loading cycles but at least 2 h

30 cycles

2/6 ( PM2.5 imapctor)

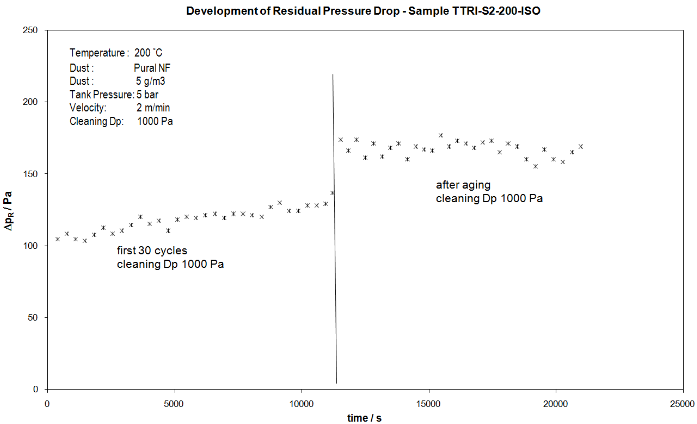

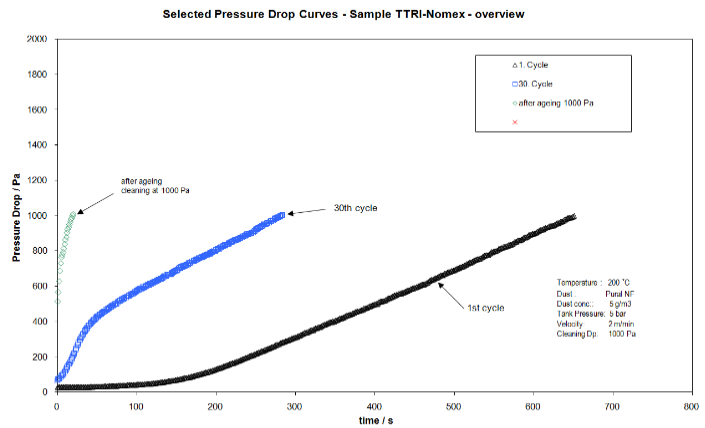

fa45ea5c28dbc9c6ddce6699064b9ec2.png       f8bef7544d0f4de9d8471adb4de63dad.png
